Adaptive Thresholding in JavaScript

Mar 03, 2025

In the previous article, we talked about how to convert an image to black and white with a threshold. It may not work well with images having uneven lighting in tasks like barcode reading.

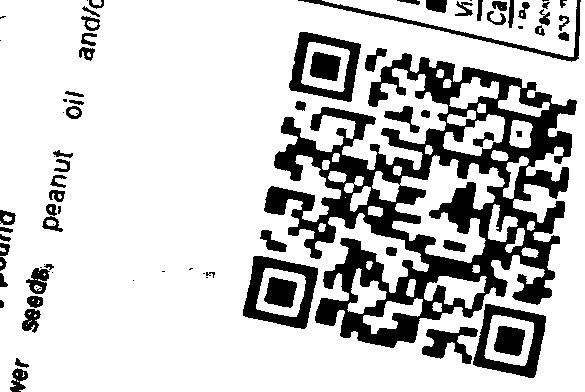

For example, if we convert the following QR code with shadow to black and white with a threshold for all the pixels, part of the QR code will get lost, making it unreadable.

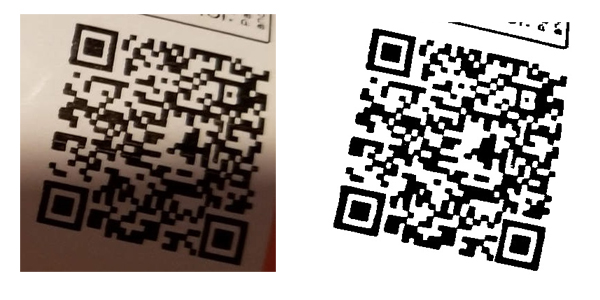

In such cases, we can use adaptive thresholding to achieve a good result. This technique calculates the threshold for each pixel based on its neighbouring pixels.

In this article, we will implement adaptive thresholding in JavaScript using HTML5’s Canvas. We will also explore how to do this using Dynamsoft Barcode Reader.

Online demo

New HTML File

Create a new HTML file with the following content which can select a local image and display it.

<!DOCTYPE html>
<head>
  <meta charset="UTF-8">
  <meta name="viewport" content="width=device-width, initial-scale=1.0">
  <title>Adaptive Thresholding</title>
  <style>
  .imageContainer {
    overflow: auto;
    max-width: 360px;
  }

  .imageContainer img{
    width: 100%;
  }

  #imageHidden {
    display: none;
  }
  </style>
</head>
<html>
<body>
  <div id="app">
    <h2>Adaptive Thresholding</h2>
    <button id="loadFileButton">Load a File</button>
    <input style="display:none;" type="file" id="file" onchange="loadImageFromFile();" accept=".jpg,.jpeg,.png,.bmp" />
    <button id="processButton">Process</button>
    <div id="status"></div>
    <div class="imageContainer">
      <img id="image"/>
      <img id="imageHidden"/>
    </div>
    <pre id="barcodeResult"></pre>
  </div>
  <script>
  document.getElementById("loadFileButton").addEventListener("click",function(){
    document.getElementById("file").click();
  })
  function loadImageFromFile(){
    let fileInput = document.getElementById("file");
    let files = fileInput.files;
    if (files.length == 0) {
      return;
    }
    let file = files[0];
    fileReader = new FileReader();
    fileReader.onload = function(e){
      document.getElementById("image").src = e.target.result;
      document.getElementById("imageHidden").src = e.target.result;
    };
    fileReader.onerror = function () {
      console.warn('oops, something went wrong.');
    };
    fileReader.readAsDataURL(file);
  }
  </script>
</body>
</html>

Convert an Image to Black and White with Adaptive Thresholding

Next, let’s convert the image to black and white with adaptive thresholding.

Draw the image onto the canvas and get its image data.

const cvs = document.createElement("canvas");
const image = document.getElementById("imageHidden");
cvs.width = image.naturalWidth;
cvs.height = image.naturalHeight;
const ctx = cvs.getContext("2d");
ctx.drawImage(image, 0, 0);
const imageData = ctx.getImageData(0,0,cvs.width,cvs.height)

Iterate over the pixels to calculate their threshold based on the neighbouring pixels. It takes two extra arguments: block size and a constant C.

function adaptiveThreshold(imageData, blockSize, C) {
  const width = imageData.width;
  const height = imageData.height;
  const data = imageData.data;
  const output = new ImageData(width, height);
  const outputData = output.data;

  for (let y = 0; y < height; y++) {
    for (let x = 0; x < width; x++) {
      let sum = 0;
      let count = 0;

      //local mean
      for (let dy = -blockSize; dy <= blockSize; dy++) {
        for (let dx = -blockSize; dx <= blockSize; dx++) {
          const nx = x + dx;
          const ny = y + dy;
          if (nx >= 0 && nx < width && ny >= 0 && ny < height) {
            const idx = (ny * width + nx) * 4;
            sum += data[idx]; //use the red channel as the grayscale value
            count++;
          }
        }
      }

      const threshold = (sum / count) - C;
      const idx = (y * width + x) * 4;
      const pixelValue = data[idx];

      // binarize
      outputData[idx] = outputData[idx + 1] = outputData[idx + 2] = pixelValue > threshold ? 255 : 0;
      outputData[idx + 3] = 255; // Alpha channel
    }
  }
  return output;
}

Put the updated image data back into the canvas and display the processed image.

let blockSize = 31;
let C = 10;
let newImageData = adaptiveThreshold(ctx.getImageData(0,0,cvs.width,cvs.height),blockSize,C);
ctx.putImageData(newImageData,0,0);
document.getElementById("image").src = cvs.toDataURL("image/jpeg");

Improve the Efficiency

The above implementation’s computation complexity is O(N*k*k). N stands for the number of pixels and k stands for the block size.

We can use Integral Image to reduce the complexity to O(N) with the following code:

function adaptiveThresholdWithIntegralImage(imageData, blockSize, C) {
  const width = imageData.width;
  const height = imageData.height;
  const data = imageData.data;
  const output = new ImageData(width, height);
  const outputData = output.data;

  const integral = computeIntegralImage(data, width, height);

  const halfBlock = Math.floor(blockSize / 2);

  for (let y = 0; y < height; y++) {
    for (let x = 0; x < width; x++) {
      const x1 = Math.max(x - halfBlock, 0);
      const y1 = Math.max(y - halfBlock, 0);
      const x2 = Math.min(x + halfBlock, width - 1);
      const y2 = Math.min(y + halfBlock, height - 1);

      const area = (x2 - x1 + 1) * (y2 - y1 + 1);
      const sum = getAreaSum(integral, width, x1, y1, x2, y2);
      const threshold = (sum / area) - C;

      const idx = (y * width + x) * 4;
      const pixelValue = data[idx];
      outputData[idx] = outputData[idx + 1] = outputData[idx + 2] = pixelValue > threshold ? 255 : 0;
      outputData[idx + 3] = 255; // Alpha channel
    }
  }
  return output;
}

function computeIntegralImage(data, width, height) {
  const integral = new Uint32Array(width * height);

  for (let y = 0; y < height; y++) {
    let sum = 0;
    for (let x = 0; x < width; x++) {
      const idx = (y * width + x) * 4;
      sum += data[idx];
      integral[y * width + x] = (y > 0 ? integral[(y - 1) * width + x] : 0) + sum;
    }
  }

  return integral;
}

function getAreaSum(integral, width, x1, y1, x2, y2) {
  const a = x1 > 0 && y1 > 0 ? integral[(y1 - 1) * width + (x1 - 1)] : 0;
  const b = y1 > 0 ? integral[(y1 - 1) * width + x2] : 0;
  const c = x1 > 0 ? integral[y2 * width + (x1 - 1)] : 0;
  const d = integral[y2 * width + x2];
  return d - b - c + a;
}

The time for processing the above sample image can be reduced from 2000ms to 8ms.

Adaptive Thresholding in Dynamsoft Barcode Reader

Dynamsoft Barcode Reader uses adaptive thresholding to process the images for barcode reading.

Here is the code to get the binary image via its intermediate result receiver.

let router = await Dynamsoft.CVR.CaptureVisionRouter.createInstance();
const intermediateResultReceiver = new Dynamsoft.CVR.IntermediateResultReceiver();
intermediateResultReceiver.onBinaryImageUnitReceived = (result, info) => {
  displayBinarizedImage(result)
};
const intermediateResultManager = router.getIntermediateResultManager();
intermediateResultManager.addResultReceiver(intermediateResultReceiver);
const result = await router.capture(image,"ReadSingleBarcode"); //start image processing

We can modify the parameters for adaptive thresholding by updating its JSON template’s BinarizationMode section.

{
"BinarizationMode":
  {
    "BinarizationThreshold": -1,
    "BlockSizeX": 0,
    "BlockSizeY": 0,
    "EnableFillBinaryVacancy": 1,
    "GrayscaleEnhancementModesIndex": -1,
    "Mode": "BM_LOCAL_BLOCK",
    "MorphOperation": "Close",
    "MorphOperationKernelSizeX": -1,
    "MorphOperationKernelSizeY": -1,
    "MorphShape": "Rectangle",
    "ThresholdCompensation": 10
  }
}

Dynamsoft Barcode Reader integrates various image processing methods. The converted black and white image is optimized for barcode reading, not just a simple thresholding. Meanwhile, its performance is also great based on WebAssembly.

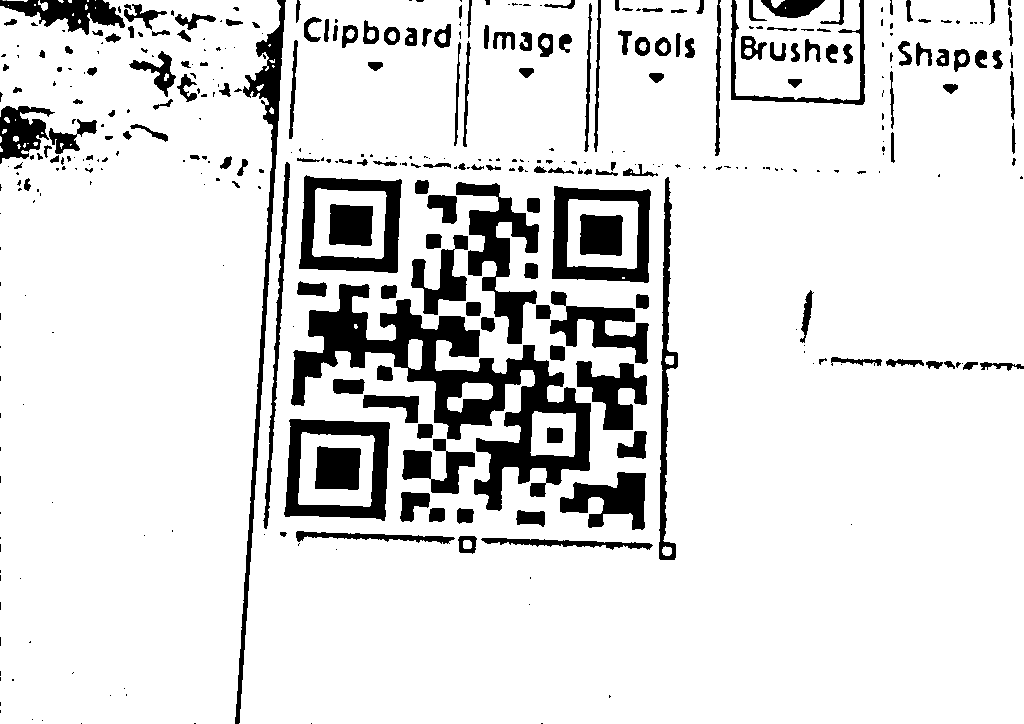

Example image with texture:
